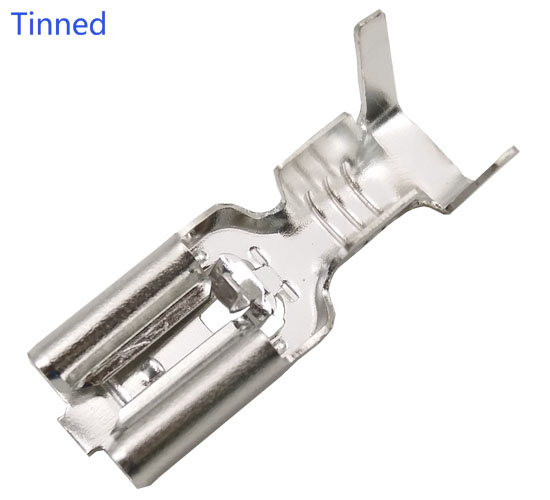

Series No.：LK250
Terminal Type：Receptacle
Terminal Orientation：Straight

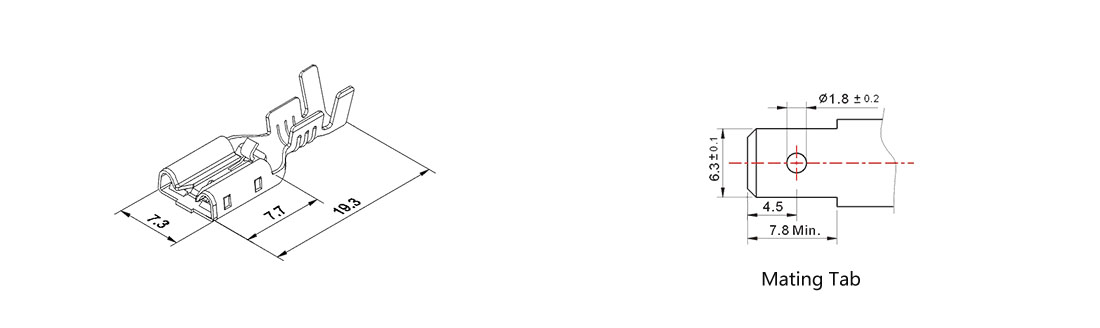

Mating Tab width：6.3mm【.250in】
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > LK250
INQUIRE NOW
| Part NO. |
Mating Tab Thickness |
Material | Finish | Wire Range | Thickness |
Packaging Quantity (Reel) |
Certified |
| LK2500802 | 0.8 | brass | tin-plated | 18-14 | 0.35 | 5K | CQC 、CB |
| LK2500802-S | 0.8 | brass | tin-plated | 22-18 | 0.35 | 6K | CQC 、CB |
| LK2500802-M | 0.8 | brass | tin-plated |
18+18 16+16 |
0.35 | 4K | CQC 、CB |
| LK2500802-L | 0.8 | brass | tin-plated | 0.75+0.75mm² | 0.35 | 5K | |
| LK2500804-M | 0.8 | brass | N-plated |
0.75+0.75mm² 1.0+1.0mm² |
0.35 | 4K |
