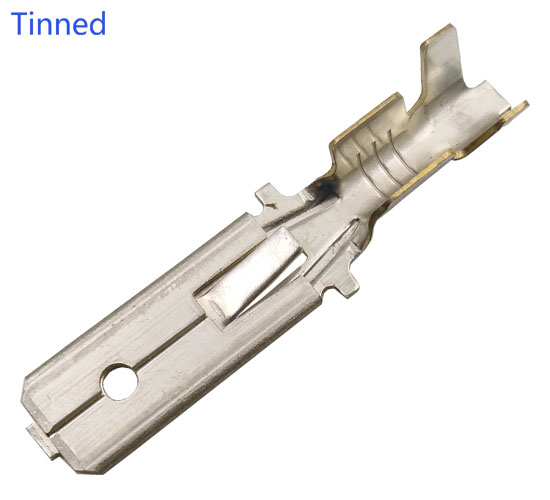

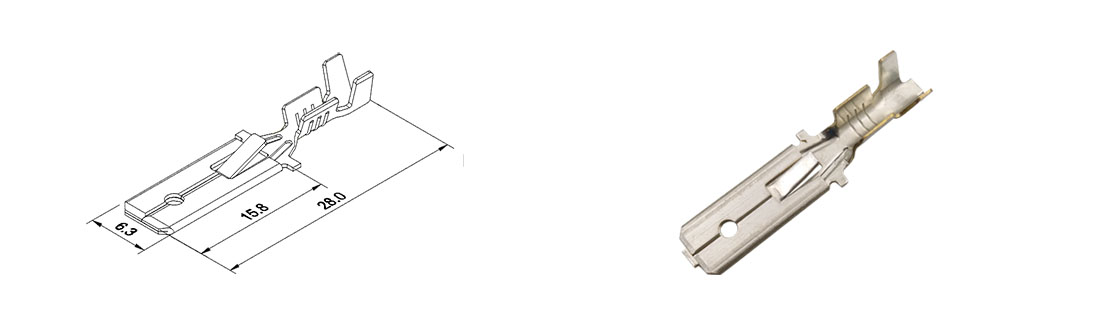

Series No.：TL630
Terminal Type：Tab
Terminal Orientation：Straight
Mating Tab width：6.3mm【.250in】
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > TL630
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| TL6300802-S | 0.8 | brass | tin-plated | 22-18 | 0.39 | 4K | CQC & CB |
| TL6300802 | 0.8 | brass | tin-plated | 18-14 | 0.39 | 4K | CQC & CB |
