Series No. : LS250
Terminal Type: Receptacle
Terminal Orientation: Straight

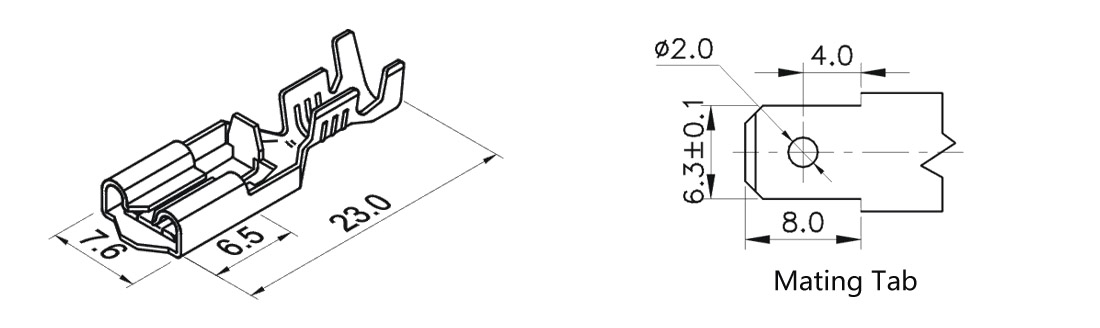

Mating Tab width: 6.3mm[.250in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > LS250
Series No. : LS250
Terminal Type: Receptacle
Terminal Orientation: Straight
Mating Tab width: 6.3mm[.250in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

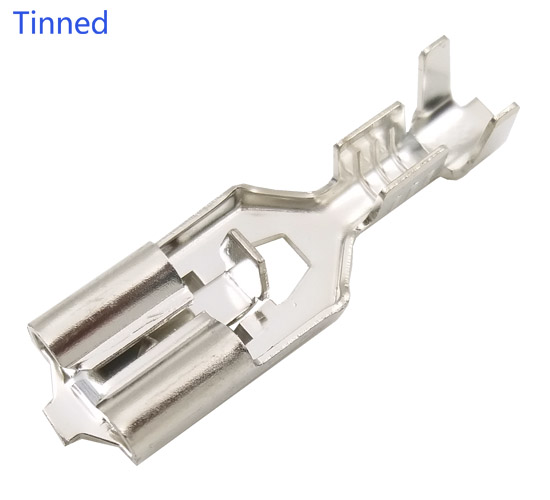

| LS2500802 | 0.8 | Brass | Tinned | 18-16 | 0.4 | 5K | - |
| LS2500802-L | 0.8 | Brass | Tinned | 2X16 | 0.4 | 5K | - |
| LS2500802-M | 0.8 | Brass | Tinned | 2X16 | 0.4 | 5K | - |
| LS2500802-S | 0.8 | Brass | Tinned | 22-18 | 0.4 | 5K | - |
| LS2500802-XS | 0.8 | Brass | Tinned | 22-18 | 0.4 | 5K | - |

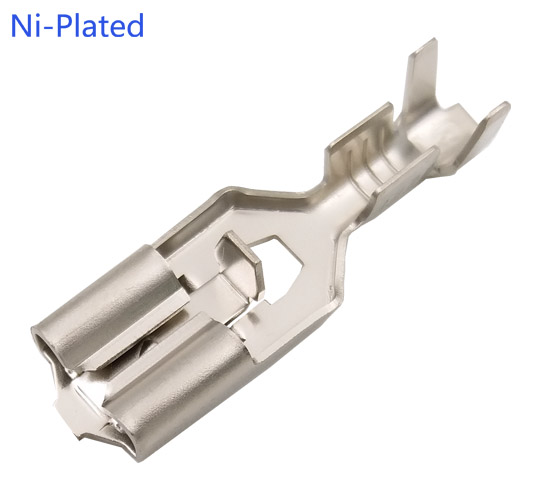

| LS2500804 | 0.8 | Brass | Ni-Plated | 18-16 | 0.4 | 5K | - |
| LS2500804-S | 0.8 | Brass | Ni-Plated | 22-18 | 0.4 | 5K | - |
