Series No. : TT112
Terminal Type: Tab Crimp
Terminal Orientation: Straight

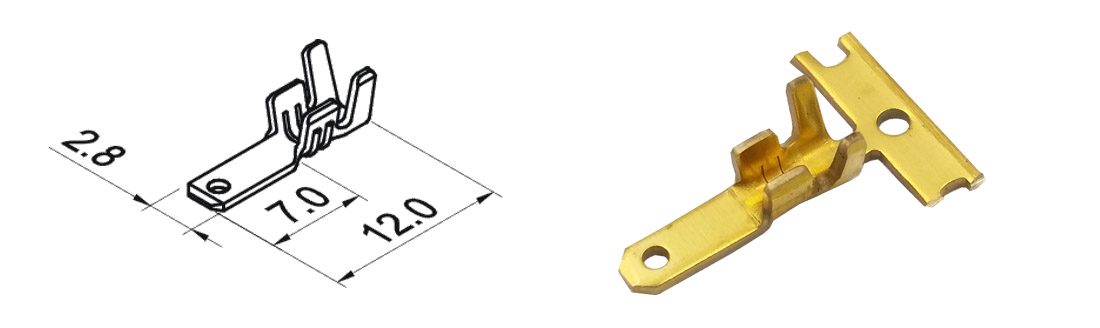

Mating Tab width: 2.8mm[.110in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 110 Series > TT112
Series No. : TT112
Terminal Type: Tab Crimp
Terminal Orientation: Straight
Mating Tab width: 2.8mm[.110in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

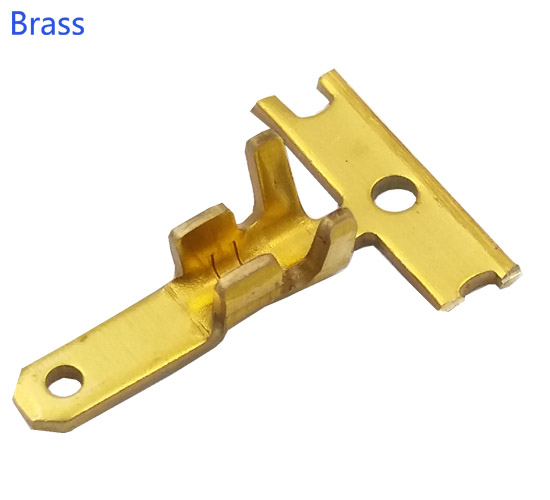

| TT1120501 | 0.5 | Brass | Unplated | 22-18 | 0.5 | 10K | - |

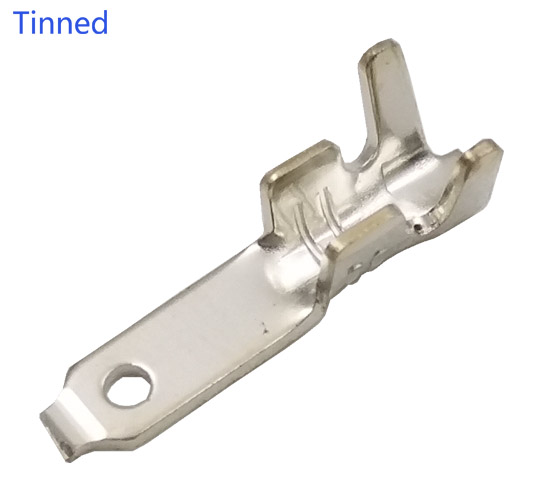

| TT1120502 | 0.5 | Brass | Tinned | 22-18 | 0.5 | 10K | - |
| TT1120502-S | 0.5 | Brass | Tinned | 24-20 | 0.5 | 15K | - |
| TT1120801 | 0.8 | Brass | Unplated | 22-18 | 0.8 | 10K | - |
| TT1120802 | 0.8 | Brass | Tinned | 22-18 | 0.8 | 10K | - |

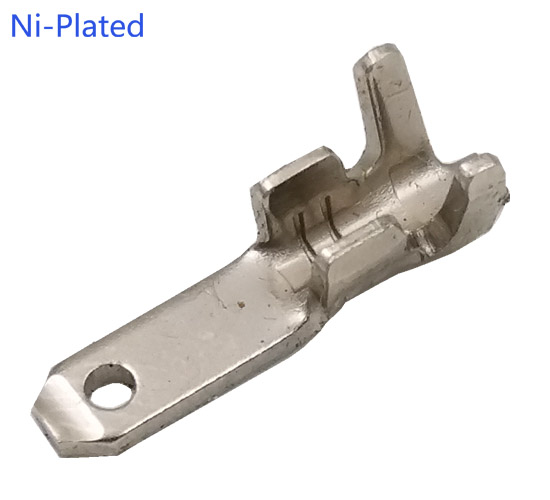

| TT1120803 | 0.8 | Steel | Ni-Plated | 22-18 | 0.8 | 10K | - |
