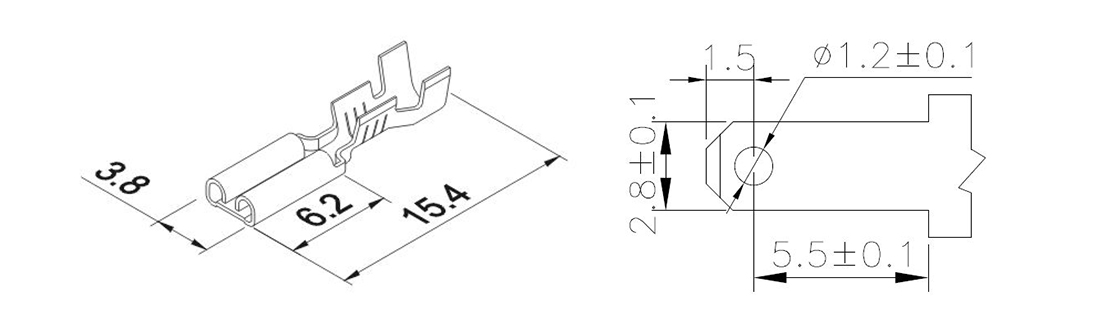

Series No. : ST110
Terminal Type: Receptacle
Terminal Orientation: Straight
Mating Tab width: 2.8mm[.110in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 110 Series > ST110
Series No. : ST110
Terminal Type: Receptacle
Terminal Orientation: Straight
Mating Tab width: 2.8mm[.110in]
INQUIRE NOW
| Part NO. | Mating Tab Thickness | Material | Finish | Wire Range | Thickness | Packaging Quantity (Reel) | Certified |

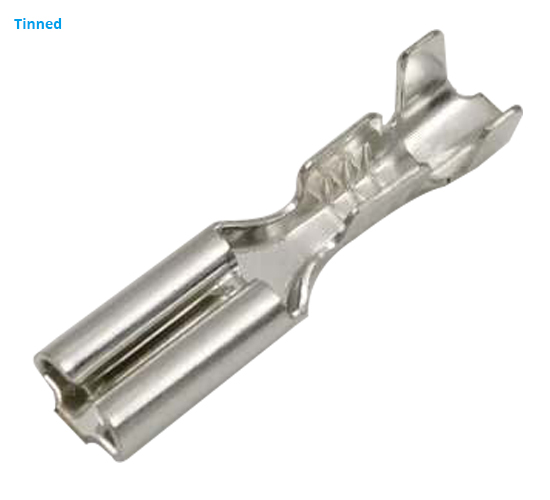

| ST1100402 | 0.4 | Brass | Tinned | 24-20 | 0.25 | 15K | - |

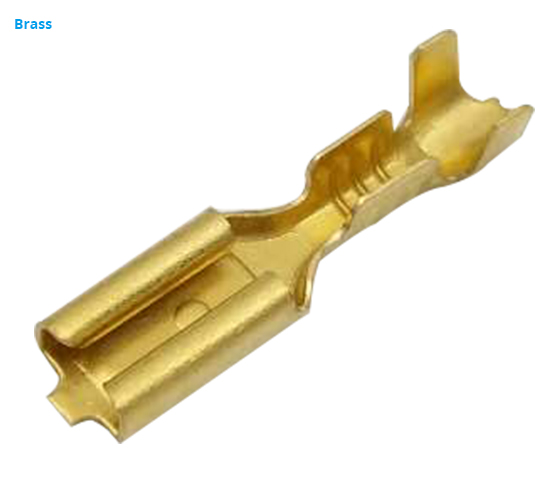

| ST1100501 | 0.5 | Brass | Unplated | 24-20 | 0.25 | 15K | - |
| ST1100501-L | 0.5 | Brass | Unplated | 20-18 | 0.25 | 10K | - |
| ST1100501-S | 0.5 | Brass | Unplated | 26-22 | 0.25 | 15K | - |
| ST1100502 | 0.5 | Brass | Tinned | 24-20 | 0.25 | 15K | UL/CQC |
| ST1100502-L | 0.5 | Brass | Tinned | 20-18 | 0.25 | 10K | UL |
| ST1100502-S | 0.5 | Brass | Tinned | 26-22 | 0.25 | 15K | - |
| ST1100504 | 0.5 | Brass | Ni-Plated | 24-20 | 0.25 | 15K | - |
| ST1100602 | 0.6 | Brass | Tinned | 24-20 | 0.25 | 15K | - |
| ST1100602-L | 0.6 | Brass | Tinned | 20-18 | 0.25 | 10K | - |
| ST1100702 | 0.7 | Brass | Tinned | 24-20 | 0.25 | 15K | - |
| ST1100801 | 0.8 | Brass | Unplated | 24-20 | 0.25 | 15K | - |
| ST1100801-L | 0.8 | Brass | Unplated | 20-18 | 0.25 | 10K | - |
| ST1100802 | 0.8 | Brass | Tinned | 24-20 | 0.25 | 15K | CQC |
| ST1100802-L | 0.8 | Brass | Tinned | 20-18 | 0.25 | 10K | - |
| ST1100802-S | 0.8 | Brass | Tinned | 26-22 | 0.25 | 15K | - |
| ST1100802-XL | 0.8 | Brass | Tinned | 2X20 | 0.25 | 10K | - |
