Series NO.：WS400
Terminal Type：Splices
Splice Type：Pigtail Splice
Strip Orientation：Side Feed
Your are here:Home > Products > Terminal & Connector > Crimp Terminals > Splices > WS400
Series NO.：WS400
Terminal Type：Splices
Splice Type：Pigtail Splice
Strip Orientation：Side Feed
INQUIRE NOW
| Part NO. | Material | Finish | Wire Range | Thickness | Packaging Quantity | Certified |
| (AWG) | (mm) | (Reel) | ||||

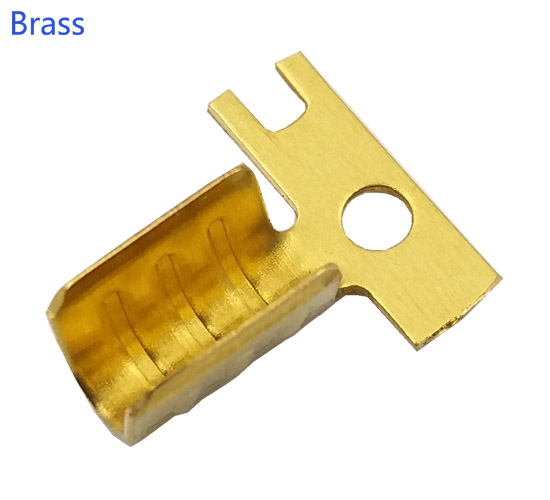

| WS4000001-40 | Brass | Unplated | 18-14 | 0.3 | 10K | - |
| WS4000001-50 | Brass | Unplated | 18-14 | 0.3 | 10K | - |
| WS4000001-L-50 | Brass | Unplated | 18-14 | 0.3 | 10K | - |
| WS4000001-M-50 | Brass | Unplated | 18-14 | 0.3 | 10K | - |

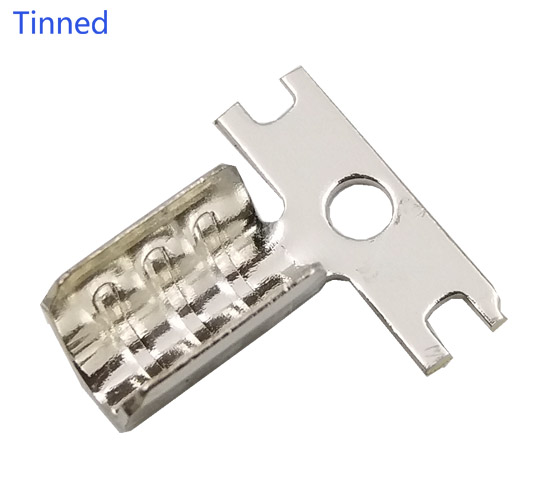

| WS4000002-40 | Brass | Tinned | 18-14 | 0.3 | 10K | - |
| WS4000002-50 | Brass | Tinned | 18-14 | 0.3 | 10K | - |

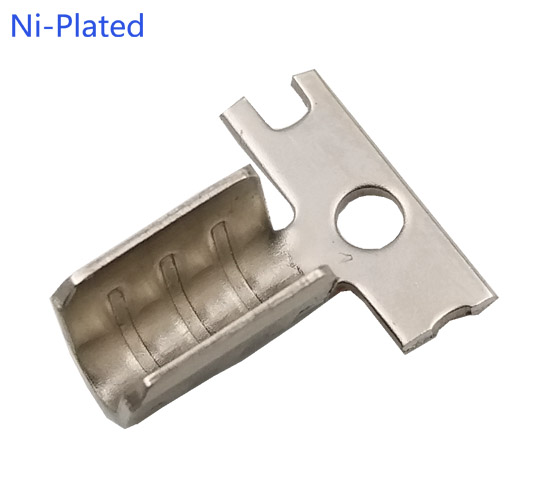

| WS4000003-40 | Steel | Ni-Plated | 18-14 | 0.3 | 10K | - |
| WS4000003-50 | Steel | Ni-Plated | 18-14 | 0.3 | 10K | - |
| WS4000004-50 | Brass | Ni-Plated | 18-14 | 0.3 | 10K | - |
| WS4000001 | Brass | Unplated | 18-14 | 0.5 | 10K | - |
