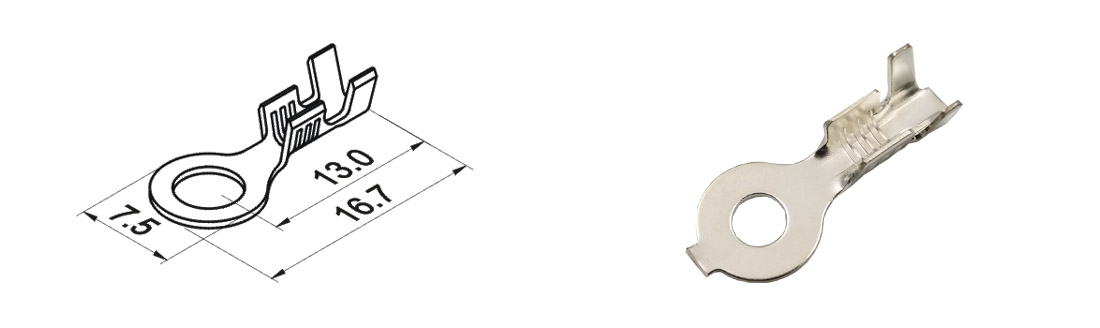

Series NO.：RT750
Terminal Type:Ring Tongue
Terminal Orientation: Straight
Your are here:Home > Products > Terminal & Connector > Crimp Terminals > Crimp Rings > RT750
Series NO.：RT750
Terminal Type:Ring Tongue
Terminal Orientation: Straight
INQUIRE NOW
| Part NO. |
Hole D (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

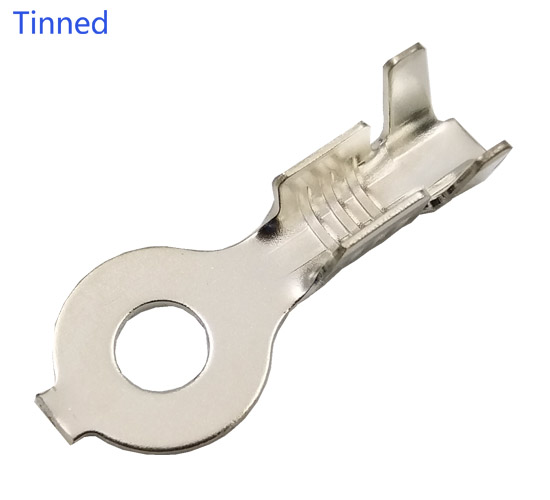

| RT7503202-40 | 3.2 | Brass | Tinned | 18-16 | 0.40 | 7K | - |
| RT7503202-50 | 3.2 | Brass | Tinned | 18-16 | 0.50 | 7K | - |
| RT7503202-L-50 | 3.2 | Brass | Tinned | 2x18 | 0.50 | 7K | - |

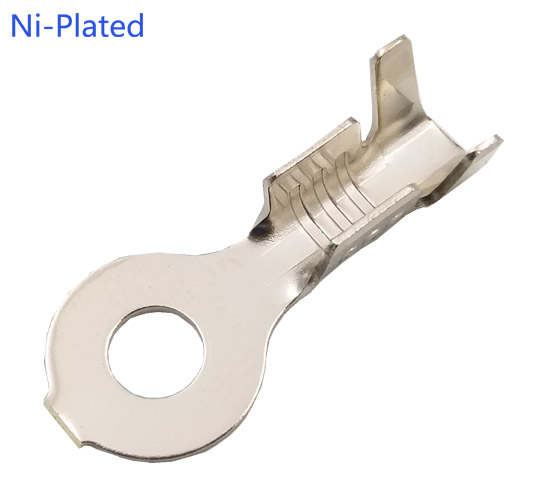

| RT7503203-40 | 3.2 | Steel | Ni-Plated | 18-16 | 0.40 | 7K | - |
| RT7503204-40 | 3.2 | Brass | Ni-Plated | 18-16 | 0.40 | 7K | - |
| RT7503204-50 | 3.2 | Brass | Ni-Plated | 18-16 | 0.50 | 7K | - |

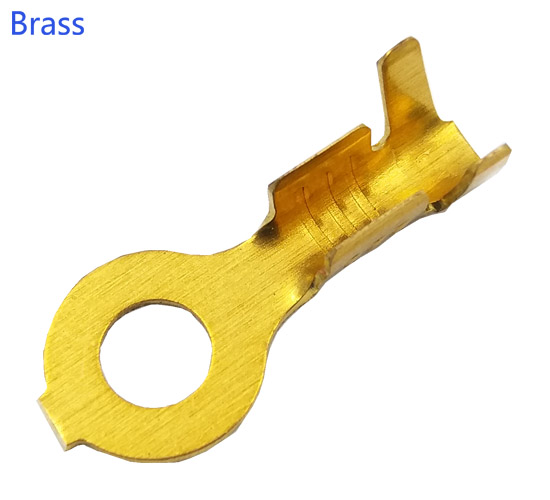

| RT7503701-40 | 3.7 | Brass | Unplated | 18-16 | 0.40 | 7K | - |
| RT7503702-40 | 3.7 | Brass | Tinned | 18-16 | 0.40 | 7K | - |
| RT7503702-50 | 3.7 | Brass | Tinned | 18-16 | 0.50 | 7K | - |
| RT7503702-L-80 | 3.7 | Brass | Tinned | 2x18 | 0.80 | 7K | - |
| RT7504301-40 | 4.3 | Brass | Unplated | 18-16 | 0.40 | 7K | - |
| RT7504301-S-50 | 4.3 | Brass | Unplated | 22-18 | 0.50 | 7K | - |
| RT7504302-40 | 4.3 | Brass | Tinned | 18-16 | 0.40 | 7K | - |
| RT7504302-50 | 4.3 | Brass | Tinned | 18-16 | 0.50 | 7K | - |
| RT7504302-L1-40 | 4.3 | Brass | Tinned | 2x18 | 0.40 | 7K | - |
| RT7504302-L-50 | 4.3 | Brass | Tinned | 2x18 | 0.50 | 7K | - |
| RT7504302-S-40 | 4.3 | Brass | Tinned | 22-18 | 0.40 | 7K | - |
| RT7504302-S-50 | 4.3 | Brass | Tinned | 22-18 | 0.50 | 7K | - |
| RT7504302-XS-40 | 4.3 | Brass | Tinned | 22-18 | 0.40 | 7K | - |
| RT7504302-XS-50 | 4.3 | Brass | Tinned | 22-18 | 0.50 | 7K | - |
| RT7504303-40 | 4.3 | Steel | Ni-Plated | 18-16 | 0.40 | 7K | - |
| RT7504303-50 | 4.3 | Steel | Ni-Plated | 18-16 | 0.50 | 7K | - |
| RT7504303-S-40 | 4.3 | Steel | Ni-Plated | 22-18 | 0.40 | 7K | - |
| RT7505102-40 | 5.1 | Brass | Tinned | 18-16 | 0.40 | 7K | - |
| RT7505102-50 | 5.1 | Brass | Tinned | 18-16 | 0.50 | 7K | - |
| RT7505102-S-50 | 5.1 | Brass | Tinned | 22-18 | 0.50 | 7K | - |
| RT7505103-40 | 5.1 | Steel | Ni-Plated | 18-16 | 0.40 | 7K | - |
| RT7505104-40 | 5.1 | Brass | Ni-Plated | 18-16 | 0.40 | 7K | - |
| RT7505301-50 | 5.3 | Brass | Unplated | 18-16 | 0.50 | 7K | - |
| RT7505301-XS-50 | 5.3 | Brass | Unplated | 22-18 | 0.50 | 7K | - |
| RT7505302-50 | 5.3 | Brass | Tinned | 18-16 | 0.50 | 7K | - |
| RT7505302-L-50 | 5.3 | Brass | Tinned | 2x18 | 0.50 | 7K | - |
