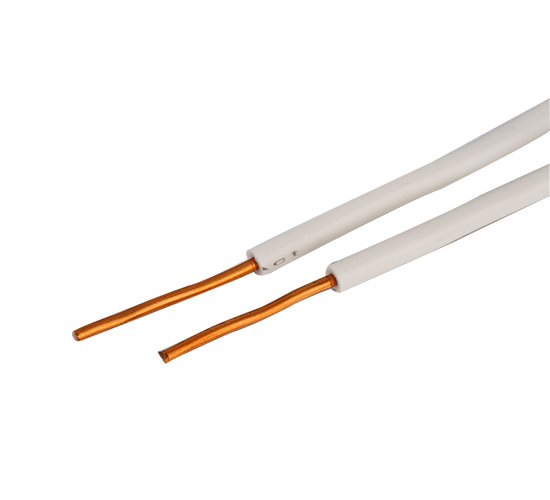

Rated Temperature: 180℃
Rated Voltage: 300/500V
Insulation: Silicone Rubber Insulation
Conductor: Solid Copper
Standard: EN50363-1, EN60228
Certificate No.: 40042356
Your are here:Home > Products > High Temperature Wire > VDE H05S-U

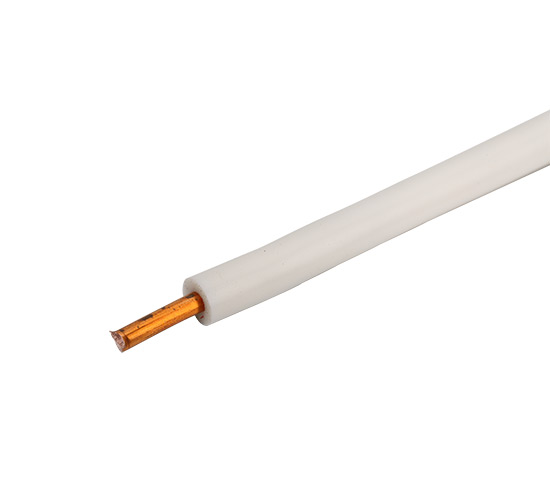

Rated Temperature: 180℃
Rated Voltage: 300/500V
Insulation: Silicone Rubber Insulation
Conductor: Solid Copper
Standard: EN50363-1, EN60228
Certificate No.: 40042356
INQUIRE NOW

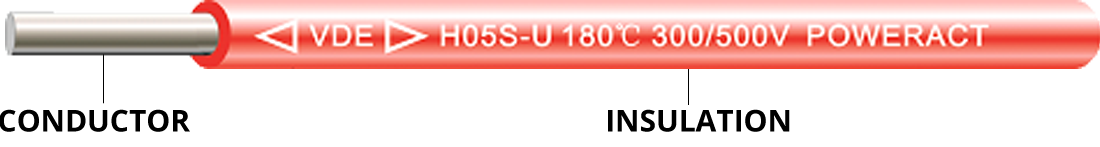

VDE H05S-U 1x 0.75mm² 180℃ 300/500V POWER ACT NO.40042356 SILICONE RUBBER
|
Electrical Properties |
Dielectric Strength Test | 2000V , without break down |
| Spark Test(HF) | 7000V AC(0.5-1.5mm2), 9000V AC(2.5mm2) without break down | |
| Physical Performance | Tensile Strength | ≥5.0 N/mm2 |
| Elongation | ≥150 % | |
| Hot set test |
Max. elongation under load 100% Max. elongation after unloading 25% |
| Type |
Section (mm2) |
Conductor Size (No./ mm) ±0.005mm |
Conductor Resistance 20℃ （Ω/Km） |
Conductor Dia. (mm) |
Insulation thickness (mm) |
Overall Diameter (mm) |
Package M/roll | ||
| Nom. | Min. | Min. | Max. | ||||||
| H05S-U | 0.5 | 1/0.8 | 36.0 | 0.813 | 0.85 | 0.62 | 2.3 |
2.9 |
305 |
| 0.75 | 1/0.98 | 24.5 | 0.98 | 0.85 | 0.62 | 2.4 | 3.1 | 305 | |
| 1.0 | 1/1.13 | 18.1 | 1.15 | 0.85 | 0.62 | 2.6 | 3.2 | 305 | |
| 1.5 | 1/1.38 | 12.1 | 1.4 | 0.95 | 0.71 | 3.0 | 3.8 | 200 | |
| 2.5 | 1/1.78 | 7.41 | 1.8 | 1.05 | 0.80 | 3.6 | 4.5 | 200 | |
